Measurement of hepatitis B virus DNA in fresh versus processed dentin from chronically infected patients
Journal of Translational Medicinevolume 16, Article number: 351 (2018)
Demineralized dentin matrix (DDM) is commonly used as a bone-graft substitute. This study measured and compared human hepatitis B viruses (HBV) DNA in fresh dentin to that of dentin processed into DDM extracted during dental treatment from HBV-infected patients. The hypothesis was that the processing procedure for DDM would inactivate or eliminate HBV in the dentin matrix obtained from infected patients.
Dentin from eighteen HBV-infected patients was collected and each dentin specimen was divided into two fragments. One fragment was used before processing as fresh dentin (control group) and the other was processed into DDM (experimental group). DNA was extracted and purified from each fresh and processed dentin specimen and the HBV DNA copy number quantitated by real time polymerase chain reaction. The HBV DNA copy number in the fresh dentin specimens were compared relative to serologic test results. The second parameter was to evaluate the effectiveness of the processing procedure (defatting, demineralization, freeze-drying, and sterilization) to inactivate or eliminate HBV by comparing the DNA copy number in the processed DDM with that in the matched fresh dentin specimens. All results were analyzed using Mann–Whitney U test to compare numerical measurements between groups and differences were considered statistically significant at P-values less than 0.05.
The presence of HBV DNA was detected in 55.56% (10/18) of the fresh dentin specimens. For the ten HBV DNA-positive fresh dentin specimens, HBV DNA was detected in two (20%) of the matched processed dentin specimens. The copy number of HBV DNA in the two positive processed dentin specimens was 1.79 and 4.03, which were statistically lower than that of the fresh dentin specimens (P = 0.0167).
The results from this study suggested that fresh dentin may be a carrier of HBV and that the procedure used to generate DDM extensively reduced the levels of HBV DNA. Further studies are needed to evaluate the infectivity of HBV in processed dentin.
Demineralized dentin matrix (DDM) is one of the most acid-insoluble collagenous scaffolds containing minerals and noncollagenous proteins (NCPs) such as bone morphogenetic protein (BMP) and is now commonly used as a bone-graft substitute. Experimental and clinical studies have clearly documented the osteoinductive properties of DDM and its value as an alternative to autogenous bone graft [1, 2]. In addition to the development of autogenous DDM, several in vivo experimental studies on allogenic DDM have been performed and showed promising results for bone repair without any immunologic responses hindering the osteoinductive and osteoconductive capacities of DDM. Subsequently, several clinical studies have been conducted to evaluate the clinical efficacy and safety of allogenic DDM between biological family members [3, 4].
However, in addition to the biologic aspects of allogenic DDM applications, the single largest potential disadvantage might be the risk of transmission of viral disease as has been seen throughout the developmental history of Bone Bank [5, 6]. Even though the biologic use of allogenic DDM has been supported by several experimental and clinical studies, certain viral diseases, such as those caused by human immunodeficiency virus (HIV) and hepatitis B and C viruses may be transmitted through the implantation of human dentin-based products derived from infected donors.
The processing of bone to produce demineralized bone matrix (DBM) entails conditions harsh enough to achieve significant levels of viral inactivation. This allows the pooling process of samples to enhance product quality and effectiveness without increasing, and perhaps even decreasing, the risk of viral transmission . For using DDM as an allogenic bone-graft substitute, the risk of viral-disease transmission should be reduced or eliminated. The processing procedure for producing DDM includes washing, defatting, demineralization, freeze-drying, and sterilization, which removes unwanted materials from the extracted tooth, such as fat, antigens, and inactivated pathogens, while preserving the valuable minerals, collagen matrix, and non-collagenous proteins leading to rapid bone regeneration and bone remodeling .
An issue for using DDM as an allogenic bone-graft substitute is whether the allogenic dentin from infected patients could be a carrier for transmissible viral diseases and if there is a potential risk of viral transmission, would the processing procedure reduce or eliminate the risk of transmission. In the current study, hepatitis B virus (HBV) was chosen as the target virus since it is the most prevalent viral infection in the Korean population at 3.7%, is present in saliva, semen, vaginal secretions and serum of infected patients, and since even with careful donor-screening and testing procedures in dental clinics, it is still impossible to be completely sure that an extracted tooth is free of viral contamination [9, 10]. This study was aimed at evaluating viral inactivation by the procedure used to process DDM by measuring HBV DNA in dentin isolated from infected patients both before and after processing. The hypothesis was that dentin obtained from HBV-infected patients could be a carrier of viable HBV to graft recipients through the transplantation and that the processing procedure to generate DDM could completely inactivate or eliminate any HBV present in the dentin matrix.
Tooth collection from HBV-infected patients
This study was approved by the Seoul National University Dental Hospital Institutional Review Board (SNUDH IRB No. CRI17011) and the Seoul National University Bundang Hospital IRB (SNUBH IRB No. B-1705/395-308). All participants signed an informed consent agreement.
Eighteen teeth from individuals chronically infected with HBV were extracted for clinical reasons during dental treatment at SNUDH and SNUBH. The HBV infections were confirmed by serological tests with titers over 1000 international units (IU)/mL (Table 1). All patients were negative for anti-hepatitis C virus (HCV) and anti-HIV antibodies, which allowed for focusing on the hepatitis B virus surface antigen (HBsAg). Vertically infected infants and child patients were excluded. The teeth from the 18 HBV-infected patients were extracted, placed in sterile bottles, and stored in a refrigerator at the dental clinic. The teeth were then aseptically packaged and shipped on dry ice to the Korea Tooth Bank (KTB, Seoul, Korea). Upon arrival at KTB, each tooth was placed in new sterile bottles and stored at − 20 °C until further processing to prevent degradation of the HBV DNA.
The dentin obtained from the HBV-infected patients was divided into two pieces. One piece was used for HBV DNA measurement in fresh dentin (control group) and the second piece was processed for production of DDM (processed dentin) and then analyzed for HBV DNA. The comparison of HBV DNA levels in the fresh dentin compared with that in the processed dentin was intended to evaluate the effectiveness of the processing procedure to inactivate or eliminate HBV in dentin (Fig. 1).
Preparation of fresh dentin and processed dentin
Each tooth was cleaned of all soft tissues, cavities, calculus, restoration, and root canal materials using a dental high-speed bur (FG 6856 018 Diamond Bur; Gebr. Brasseler GmbH & Co, Lemgo, Germany) and washed by saline irrigation. The enamel portion over the cemento-enamel-junctions was severed using a FG700 010 Cutting Bur. Root cementum was removed by scraping the surface using #15 surgical blade and FG 6856018 Diamond Bur. The remaining root portion was divided into two pieces using a dental cutting bur (FG700 010 Cutting Bur; Gebr. Brasseler GmbH & Co). All dental pulp, soft tissues, and attached hard tissues on the internal and external surfaces were cleaned using a dental handpiece.
The pieces used as fresh dentin for measuring the level HBV DNA were washed three times with sterilized water and then dried in a chamber at 56 °C for 2 h (Fig. 1a). The other pieces were processed to DDM particles as autogenous tooth bone graft material (AutoBT) according to the previous report by the Korea Tooth Bank . Briefly, the dentin segments were ground and sieved to yield particles of 300 to 800 μm in size, washed, defatted, demineralized, freeze dried, and sterilized, all under temperature-controlled sonication (40 kHz) and stirring. The particles were soaked in hydrogen peroxide (H2O2) solution for 30 min and then washed repeatedly with distilled water. The particles were then immersed in 70% ethyl alcohol for 1 h. The defatted powders were washed three times with sterile distilled water for 10 min to remove the chemicals used in the processing. The particulate dentin was demineralized to 10 to 30% residual calcium (by weight) using 0.6 N HCl solution at room temperature for 3 min. The demineralized dentin particles were then washed three times for 10 min with sterile distilled water and a sodium phosphate buffer to remove residual acid. Next, the demineralized dentin particles were soaked in 70% ethanol and H2O2 for 30 min at room temperature and then rinsed with sterile distilled water. The particles were freeze-dried over night to less than 5% residual moisture (by volume). The particles were packaged and finally sterilized with ethylene oxide gas (Fig. 1b).
HBV DNA measurements
DNA isolation and purification
In preparation for analysis by quantitative polymerase chain reaction, individual samples of fresh and processed dentin (0.5 g) were decalcified and digested using a Tbone EX Kit (DNA Chip Research Inc., Tokyo, Japan) followed by phenol–chloroform extraction. Total DNA was extracted according to the manufacturer’s instructions. Briefly, the dentin samples were placed in 50-mL tubes containing 30 mL Solution A and soaked at 23 °C for 12 h. We then added 1.8 mL Solution B to each tube containing Solution A and the sample. The mixture was gently agitated at 37 °C for 2 h and then centrifuged (13,000 rpm, 5 min). Following this, the supernatant was discarded and 400 µL of Solution C and 50 µL Proteinase K (20 mg/mL) were added to the sample. The mixture was incubated at 56 °C with gentle agitation for 3 h (Additional file 1).
The DNA solution from each sample was purified using a QIAamp DNA Investigator Kit (Qiagen, Hilden, Germany). The DNA samples were then purified using a silica membrane following the manufacturer’s instructions and as detailed in the Additional file 1. The purified DNA was eluted in 100 µL of Buffer ATE (Additional file 1).
Quantitative polymerase chain reaction
Quantitative real-time PCR (qPCR) was performed using a 7900HT Fast Real-Time PCR System (Applied Biosystems, Foster city, CA, USA) and a Hepatitis B Virus PCR Kit (MyBiosource, Inc., San Diego, CA, USA) with oasig lyophilized 2× qPCR Mastermix (Primerdesign, Ltd., Camberley, UK). The PCR reactions were set up according to the manufacturer’s instructions by aliquoting 15 μL of master mix into each reaction well of a 96-well reaction plate (Applied Biosystems, Foster city, CA, USA) followed by 5 μL of each experimental DNA sample for a final volume of 20 μL per reaction. Primer details are included in Additional file 1. Six concentrations of a reference DNA sample (the ‘Standard DNA’) were prepared by serial dilution and analyzed in triplicate for each 96-well plate in the study. All experimental DNA samples were assayed in triplicate. The thermal cycling profile included Stage 1: 2 min at 95 °C; Stage 2: 50 cycles of 10 s at 95 °C and 60 s at 60 °C with signal acquisition (Additional file 1).
Data and statistical analysis
The data were analyzed with the real-time PCR thermal cycler software (SDS 2.4.1 for the 7900HT). Fluorescence data were normalized to the ROX signal and the baseline signal and threshold were set automatically. The HBV DNA copy number in the fresh dentin was compared with that in the processed dentin of same tooth. Cut off levels and specificity were not determined due to the limited number of human dentin samples.
All statistical analysis was performed using R Statistical Software (version 3.5.1; R Foundation for Statistical Computing, Vienna, Austria). Mann–Whitney U test was used to compare numerical measurements between groups and differences were considered statistically significant for P-values were less than 0.05.
HBV DNA in fresh dentin
Among the eighteen dentins obtained from HBV-infected patients, ten fresh dentin specimens (55.6%) contained HBV DNA. HBV DNA in the other eight fresh dentins (44.4%) was not detected owing to insufficient DNA amounts or quality needed for analysis (Fig. 2). Linear regression analysis (univariate) of the correlation between HBV copy number in the fresh dentin and the HBsAg positivity based on patient serology was not statistically significant (P = 0.3536).
HBV DNA in processed dentin
HBV DNA in eight of the ten fresh dentin samples (80%) that were positive for HBV DNA appeared to be completely degraded or eliminated by the DDM processing. Samples from two of the ten patients (20%) whose fresh dentin were positive for HBV DNA were extensively degraded after processing (#3 and #14). The difference between the fresh dentin and processed dentin with respect to HBV DNA-positivity was confirmed by multivariable logistic regression analysis with a P value = 0.0167 confirming the statistical significance.

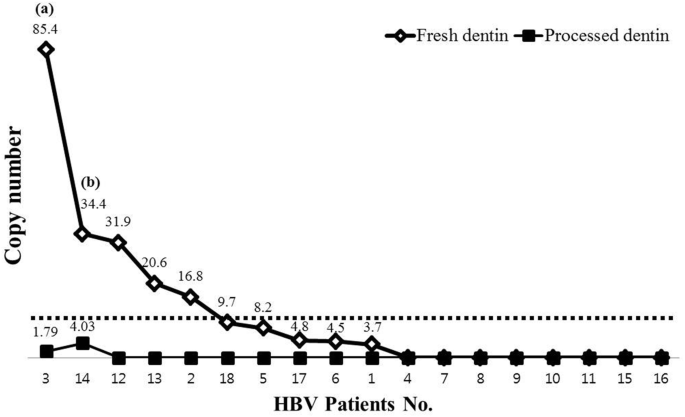

HBV DNA copy numbers of 1.79 and 4.03 in the processed dentin of patients 3 and 14, respectively, corresponded with the highest and second highest copy numbers (85.42 and 34.4, respectively) in the fresh dentin samples, which demonstrated that the samples underwent extensive degradation during the DDM processing. The eight fresh dentin samples with HBV DNA copy numbers less than 31.9 were all negative in their corresponding processed dentin samples and were considered as complete inactivation or elimination of HBV (Fig. 3, Additional file 2).
The purpose of the current study was to evaluate the ability of a processing procedure for the generation of DDM to inactivate or eliminate HBV in dentin obtained from chronically infected patients by comparing the HBV DNA levels in processed dentin with those in fresh dentin. It was our hypothesis that the processing procedure would degrade nucleic acids, inactivating HBV and rendering it noninfectious. The viral burden in fresh dentin might be a primary factor for determining the processing method to prevent HBV transmission since the removal of HBV DNA in processed dentin might assure the safety for the allogenic application of dentin. Validation of viral inactivation by the processing procedure could lead to the expanded application of allogenic DDM in the dental field.
Based on the results of the current study, dentin may be a potential carrier of HBV since 55.6% (10/18) of the fresh dentin samples that were stored refrigerated without removal of blood, saliva, or other foreign bodies at the dental clinic tested positive for HBV DNA by qPCR.
Eight of the processed dentin samples among the ten HBV DNA-positive fresh dentin samples (80%) showed complete degradation of nucleic acid of HBV DNA with the reduction being statistically significant. HBV DNA persisted in two of the processed dentin samples among the ten HBV DNA-positive fresh dentin samples (20%). These two corresponded with the fresh dentin samples containing the highest and second highest copy number of HBV DNA 85.42 and 34.4 compared to 1.79 and 4.03, respectively, post processing. A copy number less than 10 is generally considered to be negative for virus even though the actual cut off levels and specificity were not determined in the current experiment.
There have been several approaches used beyond standard donor testing and screening procedures in the developmental history of bone banks to prevent viral transmission. The use of H2O2 as an oxidizing chemical is used to process bone allografts in effort to eradicate microorganisms and viruses. Viral clearance following a 1 h H2O2 treatment verifies that the risk for disease transmission can be greatly reduced or eliminated by greater than six logs sterility assurance level (SAL), except for the porcine parvovirus (PPV) virus . SAL is the probability that an item will not be sterile after it has been subjected to a validated sterilization process. With a SAL of 10−6, the odds of an organisms surviving after allograft processing are less than one in one million . Processed bone allografts obtained from an HIV-infected donor and cleaned with a 30% ethanol solution and rinsed in 100% ethanol prior to lyophilization failed to transmit the virus to the graft recipient, whereas unprocessed bone allografts obtained from the same donor transmitted the virus . Proprietary solutions, including those used for chemical sterilization with ethylene oxide, may contain particular bactericidal, viricidal, and fungicidal agents but there is no industry-wide standard for their use . Freeze-drying is a process by which water is removed from the tissue to the point where cellular activity is no longer supported, which may inactivate HIV and HCV and reduce the risk of transmission by infected blood products and bone marrow .
Although the processing of dentin employs steps of washing, defatting, demineralization, freeze-drying, and sterilization with ethylene oxide gas, the majority of studies on viral clearance has been focused on the demineralization process in relation to the development of demineralized freeze-dried bone allograft (DFDBA). In the processing of preparing DFDBA, investigators have demonstrated that exposing allografts to low-pH solutions such as hydrochloric acid inactivates numerous viruses, including HIV, HBV, HCV, cytomegalovirus, and poliovirus [15,16,17]. Scarborough et al. performed a study to validate the effectiveness of a bone demineralization process with respect to its inactivation of viruses, including HIV, duck hepatitis B virus (a model for human hepatitis B), bovine viral diarrheal virus (a model for human hepatitis C), human cytomegalovirus, and human poliovirus (a model for small non-enveloped viruses such as hepatitis A). The infectivity of all RNA and DNA viruses is reduced more than one-million-fold (10−6) for all the viruses tested and as much as one-trillion-fold (10−12) for poliovirus. For example, the probability of HIV survival after bone demineralization is less than 1 in 2.8 billion [15, 17]. The demineralization method degrades nucleic acids in retrovirus-infected cortical bone and thereby preventing disease transmission through the allotransplantation of DBM powder. The ability of a demineralization procedure to effectively inactivate an infectious retrovirus in systemically infected bone while maintaining the desired osteoinductive properties of powdered DBM appears to provide an additional margin of safety while sustaining optimal allograft efficacy .
The Centers for Disease Control and Prevention (CDC) report that DFDBA materials are widely used in periodontal and dental therapy and that there are no reports of disease transmission during the 30-year history of using freeze-dried bone allografts . There has also been no report of disease transmission (HIV or hepatitis viruses) using demineralized bone products (FDBA, DFDBA, DBM) .
DDM consists of osteoconductive type 1 collagen and noncollagenous proteins, including osteoinductive bone morphogenetic proteins (BMPs), which stimulate the formation of bone at a defect site similar to that treated with DBM that is washed, demineralized with organic solvents, freeze-dried, and sterilized, resulting in a significant level of viral inactivation as previously mentioned [1, 21]. The major differences between DDM and DBM are that bone contains viable osteocytes and blood vessels (harversian canals and endothelial cells) while there are no cells or blood vessels in dentin that could be a potential source of transmissible viruses . Tissues obtained from living donors have lower rates of bacterial contamination than tissues harvested from cadavers at autopsy . Likewise, because dentins are obtained from patients during dental treatment, the possibility of disease transmission from dentin might be lower than that from a bone allograft. For the described reasons, a dentin allograft might be safer than a bone allograft.
However, while we measured HBV DNA levels in processed dentin, the precise step of washing, defatting, demineralization, or freeze-drying that resulted in the degradation of the virus, either alone or in combination, was not determined. Therefore, more studies to determine the effects of the various steps of dentin processing on the degradation of HBV and other viruses are warranted.
Of note, we currently do not know whether or not the positive HBV DNA in processed dentin was infectious since we did not determine the cutoff levels of HBV DNA in this experiment. Since qPCR techniques may amplify a small segment of degraded HBV DNA in the absence of intact virus, additional studies are necessary to determine whether the detected HBV DNA that remained in the processed dentin samples correlates with infectious virus. Finally, the established validation of viral inactivation procedures, including the harvesting of tissue in a sterile manner, repeated washings, immersion in ethanol, freeze-drying, demineralization, and sterilization, should be confirmed for rendering a safe DDM allograft [24, 25].
The results of the current study suggested that the positive detection of HBV DNA in 10 (55.6%) fresh dentin samples may be indicative of infected dentin, which may serve as potential carriers of HBV. A processing procedure for producing DDM completely degraded the HBV DNA in eight of the ten fresh dentin that were positive for HBV DNA. This reduction was statistically significant. The two processed dentin samples with extensively degraded HBV DNA that remained positive need to be evaluated for infectivity. For the purpose of achieving completely virus-free grafting specimens, additional studies are necessary, including those to validate viral inactivation to determine whether or not the processed dentin samples that were positive for HBV DNA were infectious. The ability of the processing procedure for DDM to effectively inactivate HBV in specimens from infected patients appears to provide an expanded margin of safety for the clinical application of allogenic DDM from the bench to chairside.
bone morphogenetic protein
center for disease control and prevention
demineralized bone matrix
demineralized dentin matrix
demineralized freeze-dried bone allograft
human hepatitis B viruses
human immunodeficiency virus
sterility assurance level
Um IW, Kim YK, Jun SH, Kim MY, Cui N. Demineralized dentin matrix as a carrier of recombinant human bone morphogenetic proteins: in vivo study. J Hard Tissue Biol. 2018;27:219–26.
Pang KM, Um IW, Kim YK, Woo JM, Kim SM, Lee JH. Autogenous demineralized dentin matrix from extracted tooth for the augmentation of alveolar bone defect; a randomized prospective clinical comparison with anorganic bovine bone. Clin Oral Implants Res. 2017;28:809–15.
Kim YK, Bang KM, Murata M, Mitsugi M, Um IW. Retrospective clinical study of allogenic demineralized dentin matrix for alveolar bone repair. J Hard Tissue Biol. 2017;26:95–102.
Um IW, Jun SH, Yun PY, Kim YK. Histological comparison of autogenous and allogenic demineralized dentin matrix loaded with recombinant human bone morphogenetic protein-2 for alveolar bone repair: a preliminary report. J Hard Tissue Biol. 2017;26:417–24.
Vangsness CT Jr, Garcia IA, Mills CR, Kainer MA, Roberts MR, Moore TM. Allograft transplantation in the knee: tissue regulation, procurement, processing and sterilization. Am J Sports Med. 2003;31:474–81.
Archibald LK, Jernigan DB, Kainer MA, Div of Healthcare Quality Promotion, National Center for Infectious Diseases, EIS Officer, CDC. Allograft-associated bacterial infections—United States. Morb Mortal Wkly Rep. 2002;51:207–10.
Zhang M, Powers RM Jr, Wolfenbarger JR. Effect(s) of the demineralization process on the osteoinductivity of demineralized bone matrix. J Periodontol. 1997;68:1085–92.
Kim YK, Um IW, Murata M. Tooth bank system for bone regeneration—safety report. J Hard Tissue Biol. 2014;23:371–6.
Ministry of Health & Welfare, Korea Centers for Disease Control and Prevention. The Third Korea National Health and Nutrition Examination Survey (KNHANES III), 2005: Health Examination. Min Health Welfare. 2005;2006:68.
American Association of Tissue Banks. Information for patients. What can you tell me about bone & tissue transplantation? A guide from the American Academy of Orthopaedic Surgeons (AAOS) & American Association of Tissue Banks (AATB). http://www.aatb.org. Accessed 2002 Dec.
DePaula CA, Mahony DJ, Sunwoo MH, Gertzman AA, Dunn MG. Title of subordinate document. In: A new process for viral clearance of cortical bone allografts and the effects on the mechanical properties and osteoinductivity. 49th annual meeting of the orthopaedic research society. http://www.ors.org/Transactions/49/0300.pdf.
Asselmeier MA, Caspari RB, Bottenfield S. A review of allograft processing and sterilization techniques and their role in transmission of the human immunodeficiency virus. Am J Sports Med. 1993;21:170–5.
Thorén K, Aspenberg P. Ethylene oxide sterilization impairs allograft incorporation in a conduction chamber. Clin Orthop Relat Res. 1995;318:259–64.
Simonds RJ, Holmberg SD, Hurwitz RL, Coleman TR, Bottenfield S, Conley LJ, et al. Transmission of human immunodeficiency virus type 1 from a seronegative organ and tissue donor. N Engl J Med. 1992;326:726–32.
Scarborough NL, White EM, Hughes JV, Manrique AJ, Poser JW. Allograft safety: viral inactivation with bone demineralization. Contemp Orthop. 1995;314:257–61.
Mellonig JT, Prewett AB, Moyer MP. HIV inactivation in a bone allograft. J Periodontol. 1992;63:979–83.
Mellonig JT. Donor selection, testing, and inactivation of the HIV virus in freeze-dried bone allografts. Pract Periodontics Aesthet Dent. 1995;7:13–22.
Swenson CL, Arnoczky SP. Demineralization for inactivation of infectious retrovirus in systemically infected cortical bone: in vitro and in vivo experimental studies. J Bone Joint Surg Am. 2003;85:323–32.
CDC. Epidemiologic notes and reports transmission of HIV through bone transplantation: case report and public health recommendations. Morb Mortal Wkly Rep. 1988;37:597–9.
Joyce MJ, Greenwald AS, Mowe J, Kennedy J, Heim CS, Rosier RN. Title of subordinate document. In: Musculoskeletal allograft tissue safety. 77th annual meeting american academy of orthopaedic surgeons. 2010. http://www.ors.org/Transactions/49/0300.pdf.
Urist MR, Dowell TA, Hay PH, Strates BS. Inductive substrates for bone formation. Clin Orthop Relat Res. 1968;59:59–96.
Murata M. Collagen biology for bone regenerative surgery. J Korean Assoc Oral Maxillofac Surg. 2012;38:321–5.
Vehmeyer S, Wolkenfelt J, Deijkers R, Petit P, Brand R, Bloem R. Bacterial contamination in postmortem bone donors. Acta Orthop Scand. 2002;73:678–83.
Committee on Research, Science and Therapy of the American Academy of Periodontology. Tissue banking of bone allografts used in periodontal regeneration. J Periodontol. 2001;72:834–8.
Holtzclaw D, Toscano N, Eisenlohr L, Callan D. The safety of bone allografts used in dentistry: a review. J Am Dent Assoc. 2008;139:1192–9.
IU, SC, YK, KP, JL, ML, and BK designed the study. IU prepared the grafting material and defined the protocol. YK, JL, and ML were approved by the Seoul National University of Bundang IRB and the Seoul National University Dental Hospital Dankook University Hospital IRB. SC, YK, JL, ML, and BK collected the teeth from the hepatitis B virus patients and analyzed the dental specimens for DNA. SC and KP statistically analyzed the DNA analysis data. IU, SC, YK, KP, JL, ML, and BK prepared the manuscript. IU was responsible for critically revising the manuscript for important intellectual content. All authors read and approved the final manuscript.
The author would like to thank Prof. Joongwon Park (National Cancer Center, Korea) for his helpful advice on various technical issues examined in this study as well as for his passionate teaching to all our participants.
The authors declare that they have no competing interests.
Availability of data and materials
The datasets analyzed during the current study are available from the corresponding author on reasonable request.
Consent for publication
Ethics approval and consent to participate
The study was conducted in accordance with the World Medical Association Helsinki Declaration and ethical principles. The protocol was approved by the Seoul National University Bundang Hospital (IRB No. B-1705-395-308) and the Seoul National University Dental Hospital Institutional Review Board (IRB No. CRI17011). The study was performed in accordance with the informed written consent obtained from each subject.
This research was supported by a grant from the Korea Health Technology R&D Project through the Korea Health Industry Development Institute (KHIDI) funded by the Ministry of Health & Welfare, Republic of Korea (Grant Number: HI15C1535).
