Potential functions and mechanisms of lysine crotonylation modification (Kcr) in tumorigenesis and lymphatic metastasis of papillary thyroid cancer (PTC)
Journal of Translational Medicine volume 22, Article number: 874 (2024)
Abstract
Objectives
To examine the putative functions and mechanisms of lysine crotonylation (Kcr) during the development and progression of papillary thyroid cancer (PTC).
Methods
Samples of thyroid cancer tissues were collected and subjected to liquid chromatography–tandem mass spectrometry. Crotonylated differentially expressed proteins (DEPs) and differentially expressed Kcr sites (DEKSs) were analyzed by Motif, dynamic expression model analysis (Mfuzz), subcellular localization, Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway annotation, Go Ontology (GO) annotation, and protein–protein interaction analysis (PPI). Validation was performed by immunohistochemistry (IHC).
Results
A total of 262 crotonylated DEPs and 702 DEKSs were quantitated. First, for the tumor/normal comparison, a dynamic expression model analysis (Mfuzz) of the DEKSs revealed that clusters 1, 3, and 4 increased with the progression of thyroid cancer; however, cluster 6 showed a dramatic increase during the transition from N0-tumor to N1-tumor. Furthermore, based on GO annotation, KEGG, and PPI, the crotonylated DEPs were primarily enriched in the PI3K-Akt signaling pathway, Cell cycle, and Hippo signaling pathway. Of note, crosstalk between the proteome and Kcr proteome suggested a differential changing trend, which was enriched in Thyroid hormone synthesis, Pyruvate metabolism, TCA cycle, Cell cycle, and Apoptosis pathways. Similarly, for the LNM comparison group, the DEKSs and related DEPs were primarily enriched in Hydrogen peroxide catabolic process and Tight junction pathway. Finally, according to The Cancer Genome Atlas Program (TCGA) database, the differential expression of Kcr DEPs were associated with the prognosis of thyroid cancer, indicating the prognostic significance of these proteins. Moreover, based on the clinical validation of 47 additional samples, Kcr was highly expressed in thyroid tumor tissues compared with normal tissue (t = 9.792, P < 0.001). In addition, a positive correlation was observed between Kcr and N-cadherin (r = 0.5710, P = 0.0015). Moreover, N-cadherin expression was higher in the relatively high Kcr expression group (χ2 = 18.966, P < 0.001).
Conclusions
Higher Kcr expression was correlated with thyroid tumorigenesis and lymphatic metastasis, which may regulate thyroid cancer progression by Pyruvate metabolism, TCA cycle, Cell cycle, and other pathways.
Introduction
Thyroid cancer is one of the most common endocrine cancers, and 90% of cases are classified as papillary thyroid cancer (PTC) [1, 2]. Despite its low morbidity and mortality rates, the incidence of thyroid cancer has been increasing annually worldwide. Lymph node metastasis is one of the malignant characteristics of thyroid cancer, and recurrence indicates poor prognosis. Currently, given the unknown molecular mechanisms underlying thyroid cancer development and progression, identifying putative mechanisms in this cancer is necessary to facilitate the development of new treatments.
Post-translational modification (PTM) of proteins plays an important role in many biological processes and disease development [3, 4]. It is involved in gene regulation, material metabolism, embryonic development, and other processes. To date, more than 400 types of PTM have been discovered [5,6,7]. In addition to classic acetylation modifications, a batch of emerging short-chain lysine acylation reactions have been identified, including 2-hydroxyisobutyrylation, succinylation, and crotonylation [8,9,10,11]. Lysine crotonylation (Kcr) refers to the transfer of crotonyl groups to lysine residues catalyzed by crotonyl transferase. It is structurally similar to acetylation in that crotonylation contains one more C–C double bond than acetylation, which results in its unique biological function. Most studies on Kcr have focused on histones, whose functions primarily involve embryonic development, disease prevention, and gene expression. Until 2017, nonhistone Kcr had been increasingly identified [12], and it is associated with tumor progression, aging, and myocardial ischemia–reperfusion [13,14,15]. However, our current understanding of Kcr is incomplete and requires further study. In particular, the possible functions and mechanisms of Kcr during the development and progression of thyroid cancer are not well understood.
In this study, we established a crotonylated proteomic profile in thyroid cancer and describe the molecular changes that occur during its development and progression. We hope to gain insight into the molecular mechanisms of PTM from a novel perspective.
Materials and methods
Samples collection
All samples were from the department of Thyroid surgery, China-Japan Union hospital of Jilin University. Patients with PTC who had undergone surgical treatment and pathologically confirmed were included in the study. Tumor samples and normal samples next to cancer were collected 30 min after surgery, immediately transferred to sterilized vials, frozen with liquid nitrogen, and stored at − 80 °C. The validation samples were collected from the pathology department, along with information on their clinicopathological characteristics.
Ethical standards
This study was conducted in accordance with the Declaration of Helsinki (2013 revision). All sampling procedures were approved by the Institutional Review Committee of China-Japan Union hospital of Jilin University (No.20220804014). All patients signed the informed consent.
Protein extraction
The sample was removed from − 80 °C, an appropriate amount of tissue sample was weighed into a liquid nitrogen pre-cooled mortar, and liquid nitrogen was added and fully ground to powder. Each group of samples was sonically lysed by adding powder 4 × volume lysis buffer (8 M urea, 1% protease inhibitor, 3 μM TSA, 50 mM NAM, and 2 mM EDTA). Centrifuge at 12,000 g at 4 °C for 10 min, remove cell debris, transfer the supernatant to a new centrifuge tube, and perform protein concentration determination using BCA kit.
Trypsin digestion
Dithiothreitol was added to the protein solution to make it a final concentration of 5 mM and reduced at 56 °C for 30 min. Acetamide iodoacetamide was then added to the final concentration of 11 mM and incubated at room temperature in the dark for 15 min. Finally, dilute the urea concentration of the sample to less than 2 M. Add pancreatic enzyme at a mass ratio of 1:50 (trypsin: protein) and hydrolyze overnight at 37 °C. Add pancreatic enzyme at a mass ratio of 1:100 (pancreatin: protein) and continue enzymatic hydrolysis for 4 h. Affinity enrichment of crotonylated polypeptides.
TMT labeling
Tryptic peptides were firstly dissolved in 0.5 M TEAB. Each channel of peptide was labeled with their respective TMT reagent (based on manufacturer’s protocol, Thermo Scientific), and incubated for 2 h at room temperature. Five microliters of each sample were pooled, desalted and analyzed by MS to check labeling efficiency. After labeling efficiency check, samples were quenched by adding 5% hydroxylamine. The pooled samples were then desalted with Strata X SPE column (Phenomenex) and dried by vacuum centrifugation.
Pan antibody-based PTM enrichment
To enrich modified peptides, tryptic peptides dissolved in NETN buffer (100 mM NaCl, 1 mM EDTA, 50 mM Tris–HCl, 0.5% NP-40, pH 8.0) were incubated with pre-washed antibody beads (PTM-503, PTM Bio) at 4 °C overnight with gentle shaking. Then the beads were washed for four times with NETN buffer and twice with H2O. The bound peptides were eluted from the beads with 0.1% trifluoroacetic acid. Finally, the eluted fractions were combined and vacuum-dried. For LC–MS/MS analysis, the resulting peptides were desalted with C18 ZipTips (Millipore) according to the manufacturer’s instructions。
LC–MS/MS analysis
Peptides were dissolved by liquid chromatography mobile phase A and separated using an EASY-nLC 1200 Ultra performance liquid system. The mobile phase A was an aqueous solution containing 0.1% formic acid and 2% acetonitrile. Mobile phase B was an aqueous solution containing 0.1% formic acid and 90% acetonitrile. Liquid phase gradient Settings: 0 ~ 38 min, 9–25% B; 38–52 min, 25–35% B; 52–56 min, 35–80% B; The flow rate was maintained at 400 nL/min at 80% B for 56 to 60 min.
Peptides by ultra high performance liquid separation system are put into the NSI of ionization ion source and then into Q Exactive HF-X mass spectrometry analysis. Ion source voltage is set to 2.0 kV, peptides mother ion and its secondary debris are using high-resolution Orbitrap detection and analysis. The scanning range of the primary mass spectrometry was set to 350–1600 m/z, and the scanning resolution was set to 120,000. The scanning range of secondary mass spectrometry was fixed at 100 m/z, and the secondary scanning resolution was set at 30,000. The data acquisition mode used data-dependent scanning (DDA) program, that is, after the primary scanning, the top 20 peptide parent ions with the highest signal intensity were selected to enter the HCD collision cell for fragmentation with 28% fragmentation energy, and the secondary mass spectrometry analysis was also performed in turn. In order to improve the effective utilization of mass spectrometry, the automatic gain control (AGC) was set to 1E5, the signal threshold was set to 5E4, the maximum injection time was set to 100 ms, and the dynamic exclusion time of tandem mass spectrometry scanning was set to 15 s to avoid repeated scanning of parent ions.
Database search
The resulting MS/MS data were processed using MaxQuant search engine (v.1.5.2.8). Tandem mass spectra were searched against the human SwissProt database (20317entries) concatenated with reverse decoy database. Trypsin/P was specified as cleavage enzyme allowing up to 4 missing cleavages. The mass tolerance for precursor ions was set as 20 ppm in First search and 5 ppm in Main search, and the mass tolerance for fragment ions was set as 0.02 Da. Carbamidomethyl on Cys was specified as fixed modification. Acetylation on protein N-terminal, oxidation on Met, crotonylation on Lys were specified as variable modifications. TMT-10plex quantification was performed. FDR was adjusted to < 1% and minimum score for peptides was set > 40.
Motif analysis
Mo Mo (motif-x algorithm) software was used to label sequence patterns around Kcr in all crotonylated protein sequences and sequence that modified amino acid composition at specific locations in 21mer (10 amino acids upstream and downstream of the site). All different database protein sequences as background database parameters. The minimum number of modifications is set to 20. Mark the original motif—x for the simulation, and the other parameters are set to default. Use the R-based heatmap package to generate heat maps for mold analysis.
Mfuzz
Sites identified from DEPs by likelihood ratio test (adjusted P value < 0.05), c-means clustering using R-wrap Mfuzz to characterize dynamic changes in expression patterns. Fuzzy C-means clustering is a soft clustering method that uses the Mfuzz algorithm with two key parameters. The algorithm iteratively assigns the profile to the cluster with the shortest Euclidean distance while minimizing the arbitrary objective function.
Subcellular localization
Subcellular localization of eukaryotic cells was predicted using Wolfpsort PSORT II, a software for predicting subcellular localization of eukaryotic cells.
KEGG pathway annotation
KEGG is an information network that connects known molecular interactions, such as metabolic pathways, complexes, and biochemical reactions. KEGG pathways mainly include: metabolism, genetic information processing, environmental information processing, cellular processes, human diseases, drug development, etc. Firstly, using KEGG online service tools KAAS to annotated protein’s KEGG database description. Then mapping the annotation result on the KEGG pathway database using KEGG online service tools KEGG mapper.
GO annotation
Gene Ontology (GO), is an important bioinformatics analysis method and tool for expressing various properties of genes and gene products. GO annotations are divided in 3 broad categories: Biological Process, Cellular Component, and Molecular Function, which explain the biological role of proteins from different perspectives. We statistically performed statistics on the distribution of differentially expressed proteins in GO secondary annotations.
PPI network analysis
The differential protein database numbers or protein sequences screened in different comparison groups were compared with the STRING (v.10.5) protein network interaction database, and the relationship was extracted according to the confidence score > 0.7 (high confidence). The differential protein interaction network was then visualized through the R package “networkD3” tool.
Immunohistochemistry staining
The para-cancerous and PTC tissues were sectioned, fixed in 4% paraformaldehyde, embedded in paraffin, and cut into sections with a thickness of 6 μm. To enhance antigen exposure and deactivate endogenous peroxidase activity, the sections were deparaffinized, rehydrated, and treated with Tris–EDTA buffer. Subsequently, the slices underwent boiling in a pressure cooker for 5 min. After three washes, the sections were incubated with BSA for 30 min followed by overnight incubation with antibodies at 4 °C. On day two, secondary antibodies were applied to the sections for 1 h at room temperature. Finally, the sections were stained with hematoxylin, dehydrated, and fixed using neutral resin.
Statistics
Standard bilateral Student’s t test (paired) was used for pairwise comparison, and X2 test was used to evaluate the relationship between Kcr expression and clinicopathological features. All statistical analyses were performed using Graph Pad Prism 8, and p < 0.05 was considered statistically significant.
Results
Comprehensive landscape of Kcr DEPs and DEKSs in thyroid cancer

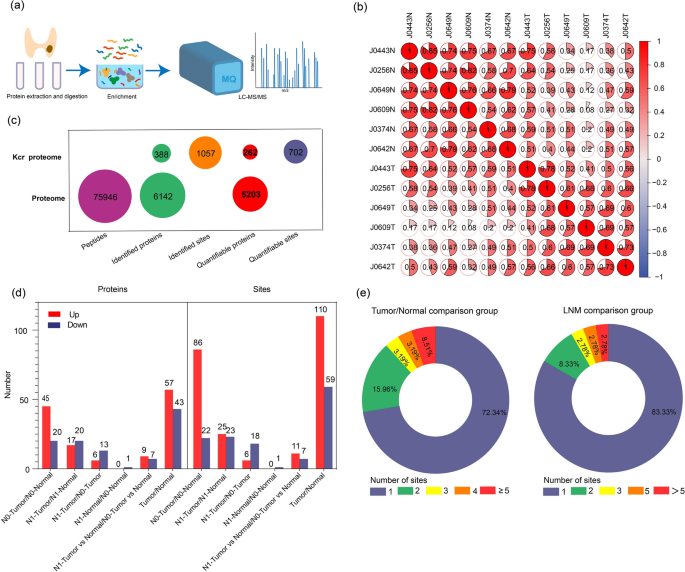

To examine the characteristics of protein crotonylation in thyroid carcinoma, six pairs of thyroid carcinoma and adjacent tissue were collected and further subjected to TMT-labeled LC–MS/MS (Fig. 1a). The 12 specimens were divided into N0 and N1 groups based on the presence or absence of lymph node metastasis. The N0 group did not present with lymph node metastasis, whereas the N1 group was diagnosed with lymph node metastasis. We focused on two comparisons: (1) the difference in Kcr between the tumor and normal groups (tumor/normal comparison group) and (2) the difference in Kcr between the proteomes associated with the LNM comparison groups, with the following three comparisons: standardized N1 tumor vs. normal/N0 tumor vs. normal group, N1 tumor/N0 tumor group, and differences between N1 tumor/N1 normal and N0 tumor/N0 normal. The heat map generated by Pearson correlation coefficient revealed consistency among the six pairs of specimens (Fig. 1b). Using a fold-change threshold of > 1.3 or < 0.67, 262 proteins and 702 crotonylation sites were quantified in the Kcr proteome, whereas 5203 proteins were quantified in the proteome (Fig. 1c). As shown in Fig. 1d, for the tumor/normal comparison group, 110 differentially expressed Kcr sites (DEKSs) of 57 DEPs were upregulated, whereas 59 DEKSs of 43 DEPs were downregulated; however, only approximately 20 DEKSs and DEPs were differentially regulated in the LNM comparison group. In addition, in the tumor/normal comparison group, 72.34% of the DEPs were associated with only one DEKS, whereas 15.96% were associated with two DEKSs (Fig. 1e). Similarly, > 83.33% of the DEPs were associated with only one DEKS in the LNM comparison group.
Changes in the characteristics of DEKSs during thyroid tumorigenesis

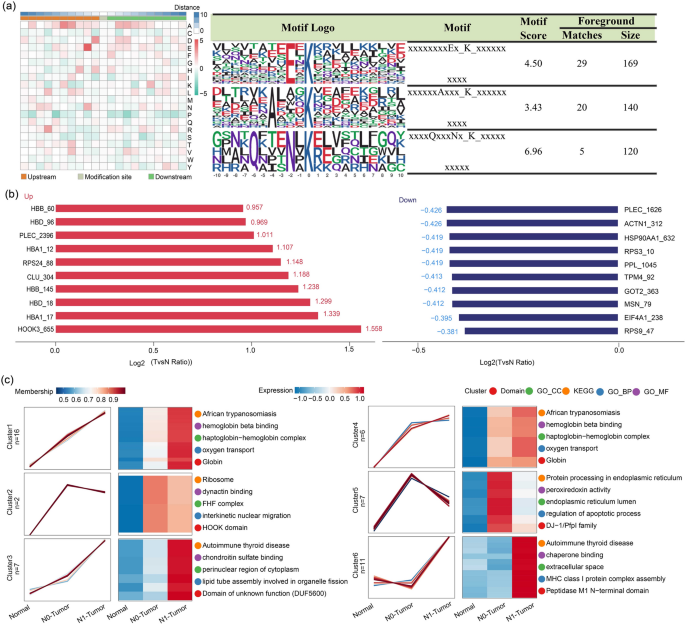

To establish a Kcr proteomic profile for thyroid cancer development, the MoMo tool was used to analyze the motif characteristics of crotonylated sites within the tumor/normal comparison group (Fig. 2a). The heatmap reflected peptide sequences consisting of 10 amino acids upstream and downstream of the identified modification sites. The frequency of lysine (K) residues was high at positions 5 and 6. Alanine(A) residues occurred more frequently at positions − 4, − 5, and 2, 3. Glutamate (E) residues were more likely to be found at position − 2. In contrast, the frequency of cysteine (C) and proline (P) residues was low. Furthermore, by analyzing the frequency of specific crotonylation sites on lysine residues, three conserved motifs were identified: xxxxxxxxEx_K_xxxxxxxxxx and xxxxxxAxxx_K_xxxxxxxxxx were the top two motif logos. The top 10 upregulated and downregulated DEKSs were listed in Fig. 2b. Hook Microtubule Tethering Protein 3 (HOOK3)-K655, Hemoglobin Subunit Alpha (HBA1)-K17, and Hemoglobin Subunit Delta (HBD)-K18 were upregulated. Plectin (PLEC)-K1626, Actinin Alpha 1 (ACTN1)-K312, Heat Shock Protein 90 Alpha Family Class A Member 1 (HSP90AA1)-K632 were downregulated. Based on a domain enrichment analysis (Supplement Fig. 1a and b), some upregulated DEKSs were significantly enriched in the 14–3-3 domain, Heat shock protein Hsp90, N-terminal domain, and Histidine kinase-like ATPase, C-terminal domain. Downregulated sites were primarily identified in Lamin Tail Domain.
To study the dynamic expression patterns of upregulated DEKSs during thyroid tumorigenesis, Mfuzz software was used to divide the 110 sites of the tumor/normal comparison group into 6 modules (Fig. 2c). The sites were classified into three groups as follows: normal group (N0 normal and N1 normal), tumor without lymph node metastasis group (N0-Tumor), and tumor with lymph node metastasis group (N1-Tumor). The expression patterns of clusters 1, 3, and 4 gradually increased during the progression of thyroid cancer. These sites were significantly enriched for African trypanosomiasis, Autoimmune thyroid disease, hemoglobin beta binding, and the haptoglobin–hemoglobin complex. Of note, a dramatic increase was observed in cluster 6 during the transition from N0-tumor to N1-tumor, although no change was evident from normal to tumor. These Kcr sites appeared to be particularly associated with lymph node metastasis and were enriched in Autoimmune thyroid disease, chaperone binding, and extracellular space. Clusters 2 and 5 were initially upregulated during the transition from normal to tumor but later downregulated during the transition from N0-tumor to N1-tumor. These related DEKSs were primarily enriched in Ribosome, dynactin binding, Autoimmune thyroid disease, and chondroitin sulfate binding. These findings suggested that these DEKSs, and their associated signaling pathways, may play important roles in the development of thyroid cancer.
Potential functions and molecular mechanisms of crotonylated DEPs in thyroid tumorigenesis

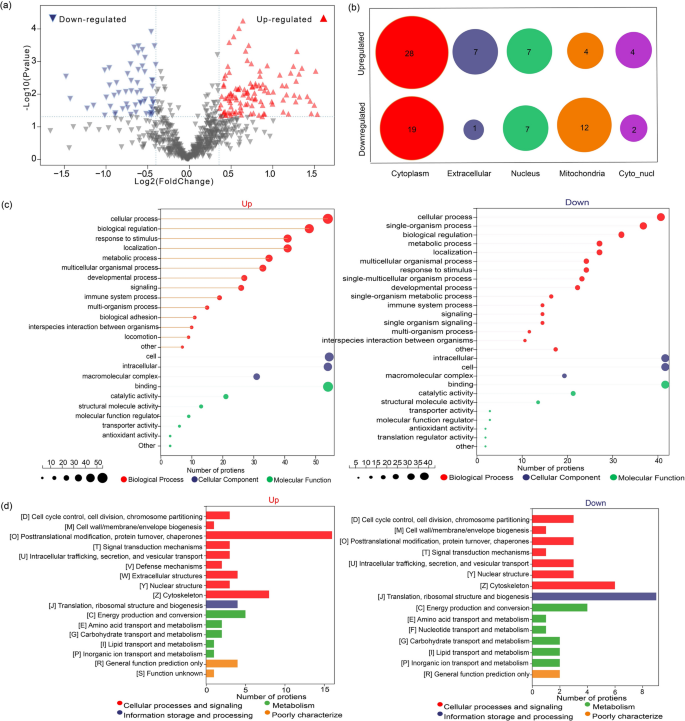

To further explore the potential functions and mechanisms of Kcr modification in thyroid tumorigenesis, we analyzed crotonylated DEPs in the tumor/normal comparison group. A volcano map revealed that 110 sites in 57 proteins were upregulated and 59 sites in 43 proteins were downregulated (Fig. 3a). Based on subcellular localization analysis (Fig. 3b), nearly half of the crotonylated DEPs were located in the cytoplasm. Interestingly, 17.5% (16 out of 91) were located in the mitochondria, which may be associated with cancer metabolism. In addition, Go annotation was applied to the upregulated and downregulated DEPs separately, which included biological process (BP), cellular component (CC), and molecular function (MF) (Fig. 3c). Both upregulated and downregulated DEPs were primarily enriched in cellular processes, biological regulation, metabolic processes, binding, catalytic activity, and structural molecule activity. As shown in the clusters of the COG/KOG category analysis (Fig. 3d), the upregulated crotonylated DEPs were emphatically clustered in posttranslational modification, protein turnover, chaperones, energy production and conversion, and the cytoskeleton. For downregulated crotonylated DEPs, translation, ribosomal structure and biogenesis, cytoskeletal activity, and energy production, and conversion were primarily associated.
To gain insight into the putative molecular mechanisms underlying the tumorigenesis of crotonylated DEPs, KEGG analysis was performed (Fig. 4a). Upregulated DEPs were primarily enriched in protein processing in the endoplasmic reticulum, antigen processing and presentation, thyroid hormone synthesis, and the hippo signaling pathway. Downregulated DEPs were primarily involved in the regulation of actin cytoskeleton, cysteine and methionine metabolism, and pyruvate metabolism. In addition, according to the PPI network (Fig. 4b), all upregulated crotonylated DEPs were primarily enriched in the PI3K-Akt signaling pathway, Cell cycle, and Hippo signaling pathways. These results suggested that Kcr modification may regulate thyroid tumorigenesis through these pathways.
Crosstalk of the proteome and Kcr proteome in thyroid tumorigenesis

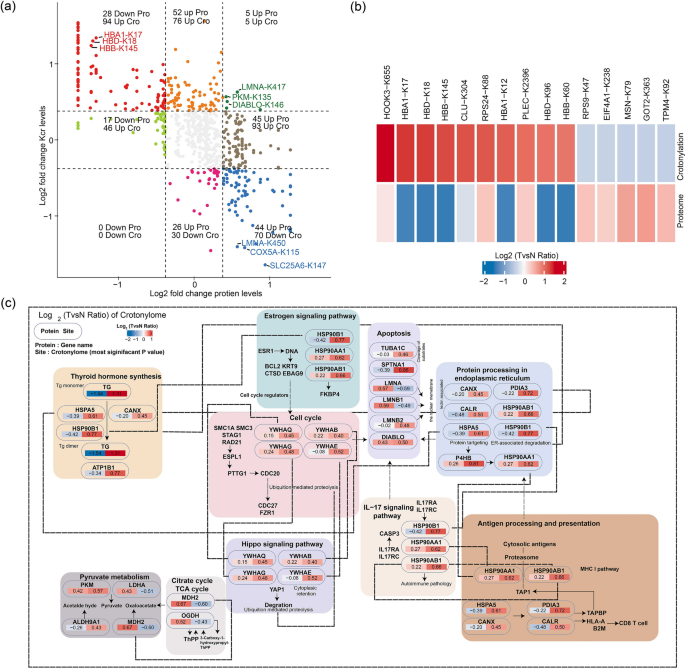

To further examine the crosstalk between the proteome and Kcr proteome, as well as its roles in thyroid tumorigenesis, we analyzed the DEKSs and DEPs together. Based on a nine-quadrant map (Fig. 5a), five proteins and five Kcr sites were upregulated simultaneously, including lamin A/C (LMNA)-K417, Pyruvate Kinase M1/2 (PKM)-K135, and Diablo IAP-Binding Mitochondrial Protein (DIABLO)-K146. Of note, in the first quadrant, 28 proteins were downregulated, whereas 94 Kcr sites were upregulated, such as HBA1-K17, HBD-K18, and HBA1-K145. In contrast, in the ninth quadrant, 44 proteins were upregulated, and 70 Kcr sites were downregulated, including LMNA-K450, Cytochrome C Oxidase Subunit 5A (COX5A)-K115, and Solute Carrier Family 25 Member 6 (SLC25A6)-K147. We assumed that differential changes between the DEPs and DEKSs levels could be interesting. Some top changed and interesting DEKSs and associated DEPs were listed in Fig. 5b, such as HOOK3-K655, HBA1-K17, and PLEC-K2396.
According to cluster analysis of the KEGG pathways of crotonylated DEPs between different comparison groups (Supplement Fig. 2), we merged representative DEKSs and DEPs into enriched signaling pathways (Fig. 5c). The crotonylated proteins were primarily enriched in Thyroid hormone synthesis, Pyruvate metabolism, TCA cycle, Cell cycle and Apoptosis pathways. For the Thyroid hormone synthesis pathway, the expression of Thyroglobulin (TG) at the protein and crotonylation levels was reversed. For the Pyruvate metabolism pathway, PKM protein and its crotonylation expression levels were upregulated simultaneously, whereas Lactate Dehydrogenase A (LDHA), Aldehyde Dehydrogenase 9 Family Member A1 (ALDH9A1), and Malate Dehydrogenase 2 (MDH2) exhibited opposite changes in protein and crotonylation expression levels. In the TCA cycle, the protein levels of several key enzymes, such as MDH2 and Oxoglutarate (OGDH) were significantly increased, whereas their crotonylation levels were decreased. This suggested that crotonylation levels may affect the expression of proteins related to metabolism, and the specific mechanism warrants further study. In addition, for the Cell cycle pathway, most 14–3-3 family proteins were upregulated at the protein and crotonylation levels; however, the 3-Monooxygenase/Tryptophan 5-Monooxygenase Activation Protein Epsilon (YWHAE) protein levels was downregulated, whereas its crotonylation levels was upregulated. These data suggested that differentially changing models and profiles should be considered when determining the mechanisms responsible for the development and progression of thyroid cancer.
Features and possible molecular mechanisms of the Kcr proteome in lymphatic metastasis of PTC

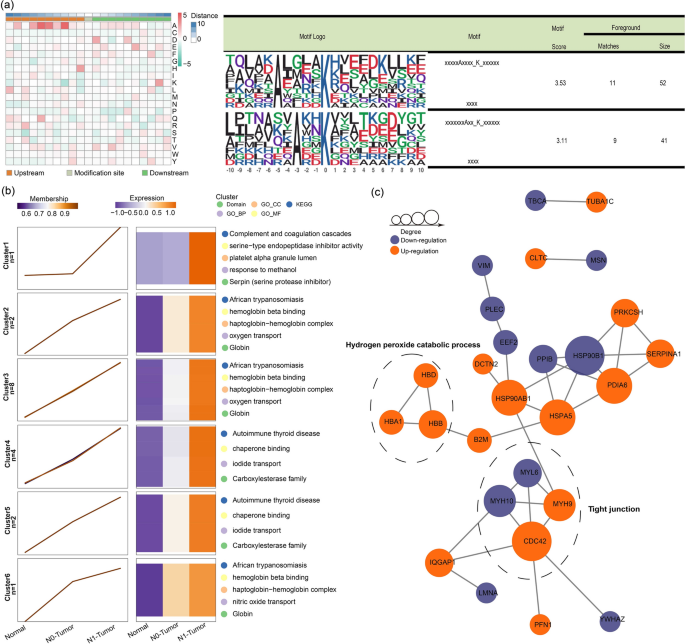

To determine the possible functions and molecular mechanisms of the Kcr proteome in the process of lymphatic metastasis of PTC, we specifically focused on the DEKSs and DEPs within the LNM comparison group.
As shown in Fig. 6a, the frequency of lysine (K) residue was high at position 9. Alanine(A) residues were more inclined to be distributed in positions -3, -5, and -6. Nevertheless, cysteine (C) and glycine (G) occurred rarely. Moreover, two sequences with specific crotonylation sites were discovered: xxxxxAxxxx_K_xxxxxxxxxx and xxxxxxxAxx_K_xxxxxxxxxx. Subsequently, expression pattern clustering analysis was performed on 36 upregulated DEKSs (Fig. 6b). All clusters showed a significant upward trend during thyroid cancer progression. These DEKSs were primarily gathered in Complement and coagulation cascades, Autoimmune thyroid disease, and iodide transport. According to the PPI network from the LNM comparison group (Fig. 6c), the upregulated DEPs were enriched into Hydrogen peroxide catabolic process and Tight junction pathway. This suggested that lymph node metastasis of thyroid cancer may be related to crotonylation modification in these pathways.
Prognositic prediction of Kcr DEPs in thyroid cancer

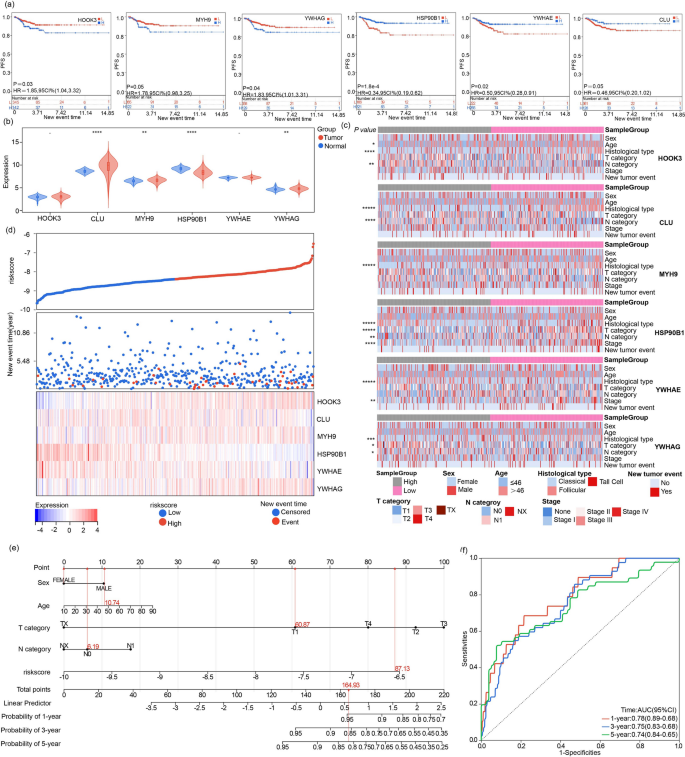

To verify the predictive value of crotonylated proteins in the development and progression of thyroid cancer, TCGA database analysis was performed. According to the screening criteria, survival analysis was performed on 18 crotonylated DEPs, and 6 of them showed a potential predictive value. As shown in Fig. 7a, compared with low HOOK3 expression, high HOOK3 expression was associated with decreased progression-free survival (PFS), indicating that high HOOK3 expression was positively correlated with worse prognosis. This phenomenon was also observed in Myosin Heavy Chain 9 (MYH9) and Tyrosine 3-Monooxygenase/Tryptophan 5-Monooxygenase Activation Protein Gamma (YWHAG). However, different trends had emerged in Clusterin (CLU), Heat Shock Protein 90 Beta Family Member 1 (HSP90B1), and YWHAE, suggesting that low expression of CLU, HSP90B1, and YWHAE indicated poor prognosis. In addition, the differential expression of Kcr DEPs was validated, and their expression levels were higher in cancer tissues than in adjacent tissues (Fig. 7b).
The correlation between the expression of these six proteins and clinicopathological features was further evaluated. The results showed that their expression were correlated with tumor grade, subgroup histologic type, etc. (Fig. 7c). As shown in Fig. 7d, the expressions of CLU, HSP90B1, and YWHAE were negatively correlated with the increase of riskscore, which showed they were protective factors. On the contrary, HOOK3, MYH9, and YWHAG were risk factors, with an upward trend in their expression with the increase of riskscore.
Moreover, to better predict the prognosis of thyroid cancer, a nomogram was constructed (Fig. 7e). For example, in a 42-year-old (10.74) female (0) patient with thyroid cancer, T1 category (60.87), N0 category (6.19), and high risk score (87.13), the score is 164.93. The 1-, 3-, and 5-year PFS rates were 95%, 86%, and 82%, respectively. The nomogram had good prediction accuracy, with a C-index of 0.72 (95% confidence interval, 0.65–0.79). The receiver operating characteristic curve showed that the areas under the curve of the nomogram for predicting postoperative 1-, 3-, and 5-year PFS rates were 0.78, 0.75, and 0.74 (Fig. 7f). The calibration curve showed that the nomogram could predict 1-, 3-, and 5-year disease-free survival well (Supplement Fig. 3). The above validation implied that the crotonylated proteins showed good performance in predicting the prognosis of thyroid cancer.
Clinical validation of the relationship between Kcr levels and lymphatic metastasis in PTC

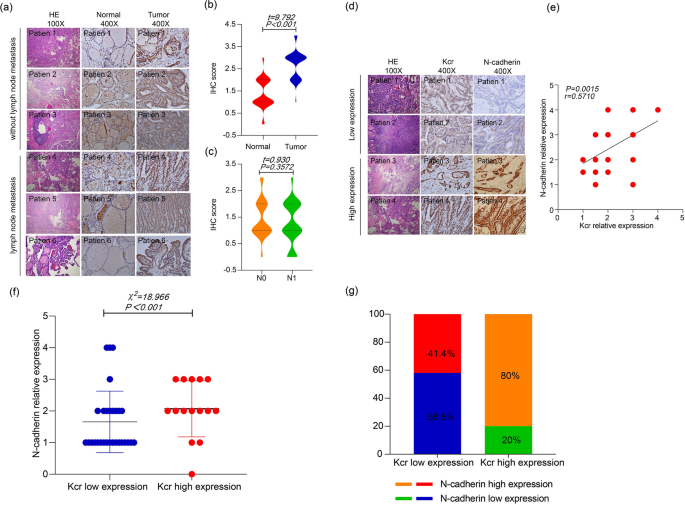

To further verify the differential expression of Kcr in thyroid cancer as well as the relationship between Kcr expression and PTC development, additional 47 paired PTC specimens and adjacent normal tissues were collected. Kcr expression was measured by IHC and evaluated by a pathologist. Representative images of six patients were shown in Fig. 8a. Compared with adjacent normal tissues, Kcr was significantly highly expressed in tumor tissues (t = 9.792, P < 0.001) (Fig. 8b). This result was consistent with the original sequencing data; however, inconsistent with our expectation, no significant differential expression was observed between the N0 and N1 groups (t = 0.930, P = 0.357) (Fig. 8c). This may have been the result of the smaller sample size or the lower detection efficiency. N-cadherin is a marker for the epithelial-mesenchymal transformation (EMT), which is indicative of metastasis [16]. As shown in Figs. 8d and e, a positive correlation between Kcr expression and N-cadherin expression was observed (r = 0.571, P = 0.0015), which indicated that Kcr is associated with thyroid cancer tumorigenesis and lymphatic metastasis.
We also determined whether Kcr expression was associated with clinical characteristics. We compared the IHC scores of the thyroid cancer and adjacent normal tissues of each patient. Three patients were excluded because of undetectable signals; thus, 44 tumor/normal ratios from 44 patients were obtained, with an average of 2.125. All patients were divided into a relatively high and a relatively low expression group with a ratio of 2 as the cutoff. That is, patients with a ratio > 2 were identified as the relatively high expression group, whereas those with a ratio of ≤ 2 were identified as the relatively low expression group. The statistical relationships between Kcr expression and clinical characteristics were presented in Table 1. As shown in Fig. 8f and g, the expression of N-cadherin was higher in the relatively high Kcr expression group than in the relatively low Kcr expression group (χ2 = 18.966, P < 0.001), suggesting that those with high Kcr expression may be at a higher risk of developing thyroid cancer with lymphatic metastasis. However, no significant association was observed between relative Kcr expression and sex, age, tumor diameter, calcification, local external invasion, or complicated inflammation. Again, the smaller validation set may be a limitation, and further trials with larger sample sizes are needed.

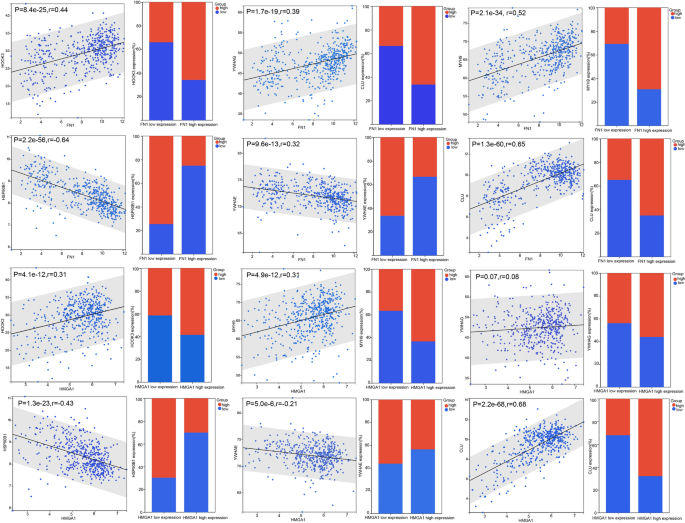

The literature review also revealed that HMGA1 and FN1, as EMT markers, were associated with the development and progression of thyroid cancer, and represented potential biomarkers for its diagnosis and prognosis [17, 18]. Thus, based on the TCGA database and our previous study, we further investigated the association between Kcr and HMGA1 and FN1. As illustrated in Fig. 9, the correlation between the expression of FN1 and 18 Kcr DEPs was examined. The findings indicated a significant correlation between FN1 and these DEPs. Specifically, its expression was positively correlated with the expression of HOOK3 (P = 8.4e-25, r = 0.44), YWHAG (P = 1.7e-19, r = 0.39), and MYH9 (P = 2.1e-34, r = 0.52), which were all identified as risk factors for thyroid cancer. Similarly, the same study on HMGA1 found that HMGA1 expression was correlated with HOOK3 (P = 4.1e-12, r = 0.31) and MYH9 (P = 4.9e-12, r = 0.31). These findings suggested a correlation between Kcr expression and HMGA1 and FN1, which are EMT markers.
Discussion
The incidence of thyroid cancer, the most common endocrine malignancy, has been increasing annually. Understanding the pathogenesis of thyroid cancer is important for improving the accuracy of diagnosis and developing strategies for individual treatment. Crotonylation is a novel acylation modification that it contributes to numerous diseases. Therefore, we examined the role of crotonylation in the mechanisms of thyroid cancer occurrence and progression. First, we performed a comprehensive analysis of crotonylation in thyroid cancer tissues. Second, we analyzed the clustering of DEKSs and their pathways. In addition, the signaling pathways involved in crotonylated DEPs were identified. Crosstalk between the proteome and Kcr proteome indicated a differential expression of DEKSs and DEPs. Finally, utilizing the TCGA database, we identified that Kcr DEPs possessed significant prognostic value. In addition, we validated the association between Kcr levels and thyroid tumorigenesis and lymph node metastasis using an additional set of 47 clinical samples.
Crotonylation is a novel PTM of proteins. Since its discovery in 2011 [19], it has been proven to play a nonnegligible role in various diseases, such as kidney disease, tumors, depression, bacterial infections, and AIDS [20,21,22,23,24,25,26,27]; however, these studies have focused on histones. With the development of MS, nonhistone crotonylation modification was proposed. Since then, numerous nonhistone crotonylation modifications have been identified. Previous studies have shown that nonhistone crotonylation is involved in various diseases, such as kidney and cardiovascular diseases, obesity, tumors, and muscle damage [28,29,30,31,32, 32,33,34].
Crotonylation modifications are strongly associated with the pathogenesis and metastasis of some tumors. As presented in Supplementary Table 1, laminA K265/K270 crotonylation plays a crucial role in the proliferation of hepatocellular carcinoma cells [26]. High levels of crotonylation at PGD-K163 and TKT-K140 suppress the pentose phosphate pathway and glycolysis in HCC cells while constraining the Warburg effect [35]. Furthermore, Ehhadh K572cr has been implicated in promoting increased DNA damage in vitro and driving the occurrence and progression of liver cancer [27]. In cervical cancer, CDYL negatively regulates the K88, K379, and K395 sites on RPA1 and participates in the repair of DNA damage resulting from ionizing radiation or antitumor drugs [28]. ENO1 K420cr is associated with the proliferation, invasion, and metastasis of colorectal cancer [36]. Similarly, differentially expressed Kcr sites have been identified in acute lymphoblastic leukemia [37]. This study focused on the mechanism of crotonylation in tumorigenesis and lymphatic metastasis of PTC. Based on mass spectrometry (Fig. 10), 388 Kcr proteins and 1057 Kcr sites were identified. Of these, the crotonylation of proteins, such as HOOK3, HBA1, HBD, PLEC, and ACTN1, was significantly increased in cancer tissues. In the KEGG signaling pathway analysis, these DEPs were primarily enriched in signaling pathways, such as the PI3K–Akt signaling pathway, Cell cycle, Apoptosis, TCA cycle, Pyruvate metabolism, and Hippo signaling pathways. The proteins included the 14-3-3 protein family, LMNA, TG, PKM, and LDHA. In particular, the 14-3-3 protein family has been previously implicated in cancer. In addition, LMNA, which is associated with liver cancer cell proliferation [30], was significantly upregulated in thyroid cancer, particularly at K417. In addition, PKM, which is highly expressed in most cancers [38], was expressed in this study. The above results indicate the involvement of crotonylation in the tumorigenesis and lymphatic metastasis of thyroid cancer.
Thyroid cancer has a 5-year survival rate of > 90% [39, 40]. Although it remains relatively benign [41], a significant concern is the possibility of lymph node metastases, which is challenging. Therefore, our next study will examine the mechanism of lymph node metastasis. First, the tissue samples were divided into non-lymph node metastasis (N0) and lymph node metastasis (N1). MS revealed that compared with the N0 group, the levels of crotonylation in corresponding proteins, such as HBD (K18), Hemoglobin Subunit Beta (HBB) (K145, K9), HBA1 (K17, K91), Peroxiredoxin 2(PRDX2) (K92), Protein Kinase C Substrate 80 K-H (PRKCSH) (K376) were significantly increased. Further analysis revealed that most of these proteins were enriched in hydrogen peroxide catabolic process and tight junction pathway. These findings present the potential involvement of crotonylation in the regulation of lymph node metastasis in thyroid cancer. Given the sample size of this study, the study must be expanded and verified. Moreover, we identified the crotonylation modification of proteins in only a small set of clinical samples, which should be verified in future in vitro and in vivo studies.
Using TCGA database, we developed a nomogram to predict prognosis with high accuracy. Among the six proteins included in the nomogram, HOOK3, MYH9, and YWHAG received particular attention because they were identified as risk factors for new tumor events following thyroid cancer surgery. HOOK3, a member of the hook microtubule-tethering protein (HOOK) family, is an adaptor protein that connects organelles to microtubules [42]. Several studies have suggested that HOOK3 is associated with cancer. For example, the RET-HOOK3 rearrangement has been reported in thyroid cancer, which is carcinogenic [43]. In another study, high HOOK3 expression levels were found to be an independent predictor of prostate cancer recurrence [44]. MYH9 is a subunit of class II conventional myosin, which interacts with actin and participates in cell movement, migration, and adhesion. MYH9 facilitates the progression of various cancers, including prostate, ovarian, esophageal, and breast cancers [45,46,47,48]. YWHAG belongs to the 14-3-3 acidic protein family, and its dysregulated expression has been observed in various cancer types, playing a crucial role in the progression of malignant tumors [49]. Thus, this nomogram can serve as a tool for predicting prognosis. Nevertheless, the accuracy of this predictive capability requires further validation in future multicenter studies with larger cohorts.
In previous studies, Kcr was considered to be more strongly expressed in cancer tissue, and we demonstrated this in thyroid cancer using IHC. In this study, Kcr expression was significantly higher in cancer tissues than in normal tissues. Although there was no significant difference between the lymph node and non-lymph node metastasis groups, there was a trend toward higher expression in the lymph node metastasis group. With respect to higher Kcr expression in the lymph node metastasis group, we examined the relationship between Kcr and metastasis. As a marker of EMT, N-cadherin exhibits increased expression and promotes cancer cell migration and invasion in various cancers [50]. Our results showed that the relative expression of Kcr was positively correlated with the expression of N-cadherin. Therefore, lymph node metastasis from thyroid cancer may be related to increased Kcr levels.
A limitation of this study is that it was a single-center study with a small sample size. Therefore, the results should be validated using a larger sample size from multiple centers. In addition, although sequencing results were provided, further experimental verification of important target molecules is required.

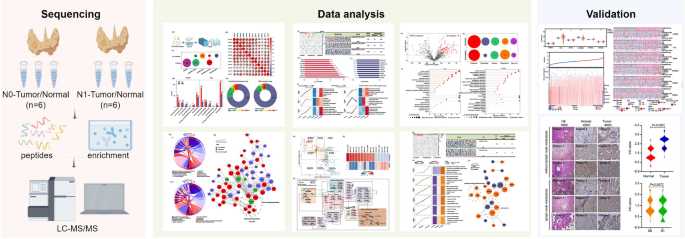

In summary (Fig. 10), we examined the potential functions and mechanisms of lysine crotonylation modification in the tumorigenesis and lymphatic metastasis of PTC. First, during thyroid tumorigenesis, DEKSs and crotonylated DEPs may regulate thyroid tumorigenesis through metabolism, the PI3K–Akt signaling pathway, Cell cycle, and Hippo signaling pathway. Second, the crosstalk between the proteome and Kcr proteome indicates differentially changing trends between DEPs and DEKSs levels, which might tell an interesting story and should be paid special attention. In addition, DEKSs and crotonylated DEPs may regulate lymphatic metastasis by Hydrogen peroxide catabolic process and Tight junction pathway. Finally, base on the TCGA database, we found that Kcr DEPs had significant potential for prognostic prediction. In addition, clinical validation suggested that higher Kcr expression was correlated with thyroid tumorigenesis and lymphatic metastasis. These results suggested that Kcr may play an important role in PTC development and progression, providing a theoretical basis for its future application in the clinical management of thyroid cancer.
